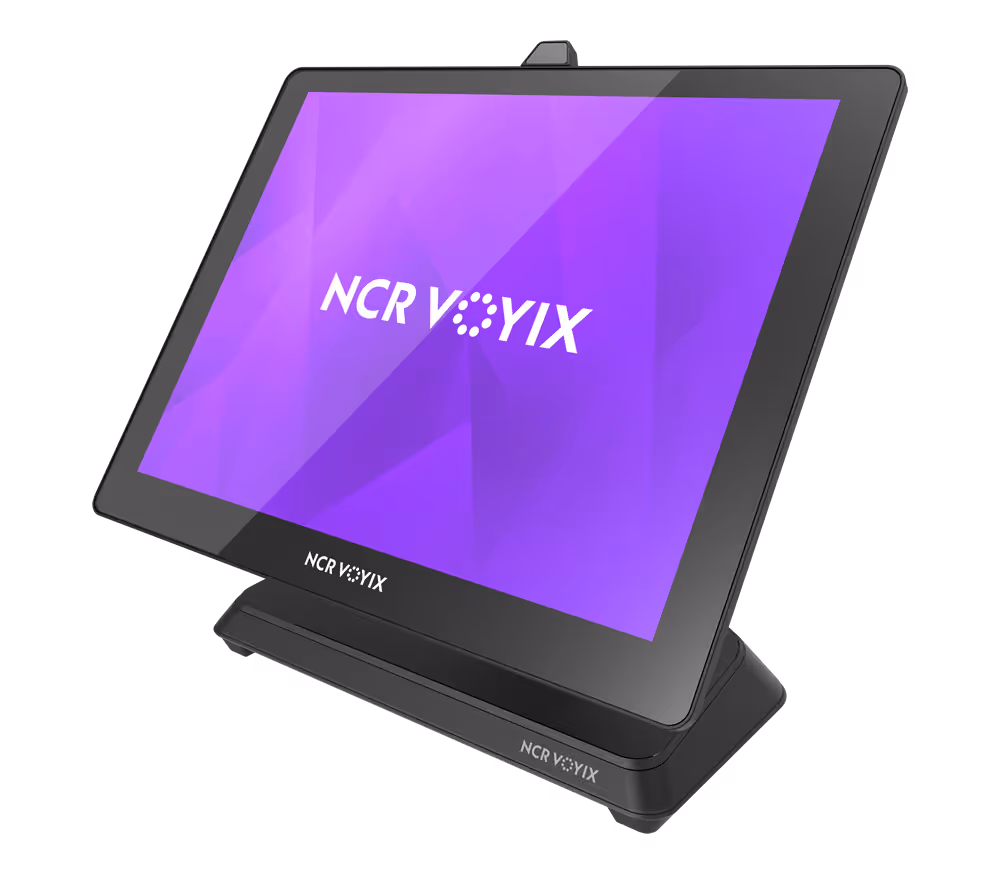

CX5 All-in-One POS
.webp)
CX5 All-in-One POS
Product Type:
POS
The NCR Voyix CX5 All-in-One POS, powered by Intel’sApollo Lake System on Chip (SoC), delivers great performance and low energycost. The CX5 is a fan-less system that features a sleek design andprovides a wide range of configuration versatility. The ability to configurewith an I/O board that accommodates environments with more USB devices or anI/O board that accommodates environments with more serial devices givescustomers the flexibility that prevents additional expansion boards or hubs.
System
Chipset: Apollo Lake
Processor: J3455
Clock speed (base): 1.5 GHz
Burst frequency: up to 2.3 GHz
Cores: 4
Level 2 cache: 2MB
Thermal design power: 10 watts
AMT: no
Intel vPro: no
Image recovery button: yes
Odometer chip: yes
RAID support: no
TPM: yes
Memory
Memory type: DDR3L
Form factor: SODIMM
Memory slots: 2
Standard memory: 4GB (1 x 4GB)
Maximum memory: 8GB (2 x 4GB)
Storage
M.2 SATA SSD: 120GB (128GB) or 240GB (256GB)
Display options
15.6 inch display: projected capacitive, 1920 x 1080, 10 point touch
15 inch 4:3 display: projected capacitive, 1024 x 768, 10 point touch
Brightness: 400 nits
Screen life: 50,000 hours to half brightness
Anti glare: yes
Integrated speaker: standard
Peripherals (optional)
3 track encrypted MSR
Wireless 802.11 AC and Bluetooth
Biometric reader
2D imager
2 in 1 sign in device
Camera
External speaker
Customer displays (optional)
APA graphical display
2 x 20 customer display
Double byte customer display
7 inch color LCD, touch or non touch
10 inch color LCD, touch or non touch
10 inch color LCD with cube scanner
Dimensions and weight – 15.6 inch model
With base: 14.95 x 7.81 x 12.08 in (379.7 x 198.4 x 306.8 mm), 11.35 lbs (5.15 kg)
Without base: 14.95 x 1.26 x 9.32 in (379.7 x 32.0 x 236.6 mm), 5.30 lbs (2.40 kg)
With integrated I O: 14.95 x 2.29 x 9.32 in (379.7 x 58.1 x 236.6 mm), 6.30 lbs (2.86 kg)
Dimensions and weight – 15 inch 4:3 model
With base: 13.88 x 8.23 x 12.52 in (352.5 x 209.0 x 318.0 mm), 12.00 lbs (5.44 kg)
Without base: 13.88 x 1.34 x 10.76 in (352.5 x 34.1 x 273.4 mm), 6.30 lbs (2.86 kg)
With integrated I O: 13.88 x 2.37 x 10.76 in (352.5 x 60.2 x 273.4 mm), 6.80 lbs (3.08 kg)
