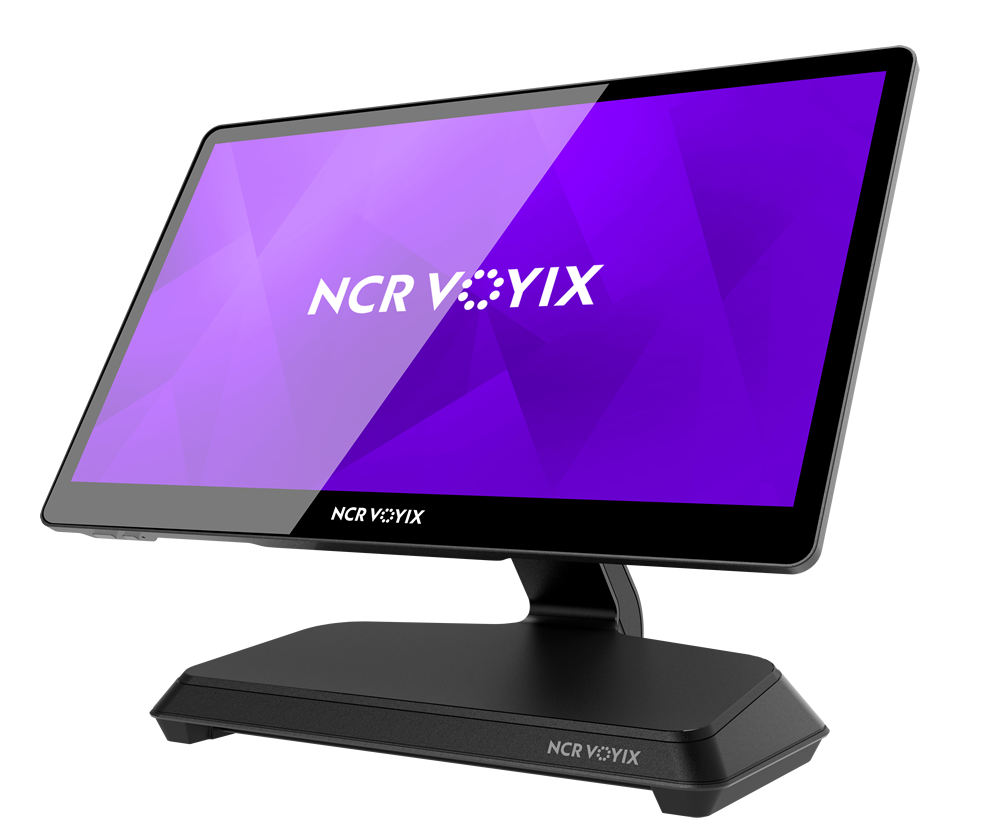

CX7ii All-in-One POS

With store and checkout concepts being such an essential component of that experience, NCR Voyix’s new CX7ii device is here to enable your own POS transformation by delivering next generation performance with a sleek design and flexible IO configurations to support a wide range of device environments without additional hardware.

Gradient background blending blue to purple with a dotted wave pattern on the right side.

CX7ii All-in-One POS

Name: CX7ii All-in-One POS
Brand: NCR Voyix

Product Type:

POS

As NCR Voyix’s new flagship device, the CX7ii couples an upscale and dramatic integrated design with best-in-class performance. Building on its landmark predecessor, the CX7ii’s exceptional versatility, ruggedness and unsurpassed data security delivers the key requirements to withstand today’s high-risk interconnected world. And you will immediately recognize how the CX7ii’s form, materials and flexibility testify to NCR Voyix’s 140+ years of global experience.

‍

The result: A top-of-the-line solution with the outstanding style, capacity and power to deliver you more than anything else in the market. Paired with NCR Voyix’s software — or your own homegrown applications — the CX7ii will anchor the ultimate operator and customer experience you want to create.

‍

Return to hardware page

Specs

Product dimensions

Device with 21.5" LCD and table-top stand: WIDTH 20.80" (528,32 mm) DEPTH 1.75" (44,5 mm) HEIGHT 12.61" (320,3 mm) WEIGHT 10.74 lb (4,87 kg)

Device with 18.5" LCD and table-top stand: WIDTH 17.90" (454,7mm) DEPTH 8.35" (212,2mm) HEIGHT 13.01" (330,4mm) WEIGHT 14.4 lb (6,53 kg)

Device with 15.6” LCD and table-top stand: WIDTH 15.6” (379,9 mm) DEPTH 7.63” (194,8 mm) HEIGHT 12” (305,6 mm) WEIGHT 10.85 lb (4,92 kg)

Devices with 15” 4:3 LCD* WIDTH 15”: 13.88“ (352,5 mm) DEPTH** 1.34” (34.1 mm) HEIGHT 10.76” (273.4 mm) WEIGHT 6.3 lb (2,86 kg)

_{* All Specifications do not include MSR or stand
** Depth without hinge is 1.87" / Depth with hinge is 47,6mm}

‍

Processors

Intel Core i5-13500TE (Gen 13) w/Intel vPro® technology
Intel Core i3-13100TE (Gen 13)

‍

Motherboard technology

Intel ”Raptor Lake” chipset
On-board RAID support
USB Type C support
Four (4) USB headers (for internal peripheral connections)
‍

Memory

8GB up to 32GB DDR4-2400 in 2 slots

‍

Storage options

Single 120GB M.2 SATA solid-state drive
Single 240GB or 480GB NVMe solid-state drive
Dual/RAID 120GB M.2 SATA solid-state drives

‍

Operating systems

Windows 10 IoT Enterprise 2021 LTSC Embedded
Windows 11 IoT Enterprise 2024 LTSC Embedded*
Windows 11 Professional
SLES Linux
NCR Linux U
‍_{* Support for this Microsoft release is planned for 2H 2024}

‍
